Fuel Oil Distillation Process: Advanced Separation Technology for Maximum Profitability

The fuel oil distillation process achieves exceptional separation efficiency through sophisticated column internals and optimized vapor-liquid contact mechanisms that deliver substantial economic benefits to operators. Modern distillation columns incorporate either high-performance tray designs or structured packing materials, each engineered to maximize the surface area where rising vapors interact with descending liquids. This intensive contact allows lighter components to preferentially transfer into the vapor phase while heavier molecules remain in the liquid, creating sharp separation between adjacent product fractions. The importance of this separation efficiency cannot be overstated for businesses seeking to maximize profitability. When a fuel oil distillation process achieves clean separation between products, the gasoline fraction contains minimal heavier molecules that would reduce octane ratings, while diesel fractions remain free from lighter contaminants that could affect cetane numbers and cold-weather performance. These quality improvements allow producers to command premium prices in competitive fuel markets where specifications are non-negotiable. Advanced tray designs feature carefully engineered hole patterns, downcomer configurations, and weir heights that promote uniform vapor distribution across the entire column diameter. This uniformity prevents channeling where vapors take shortcuts through the liquid without adequate contact, a phenomenon that degrades separation performance. Structured packing alternatives offer even higher efficiency in compact installations, using corrugated metal sheets arranged in geometric patterns that create thousands of vapor-liquid contact points per cubic meter of packing volume. The fuel oil distillation process benefits from computational fluid dynamics modeling during the design phase, allowing engineers to predict flow patterns and optimize internal configurations before construction begins. This simulation capability reduces the risk of underperformance and ensures that columns deliver expected separation efficiency from initial startup. Operators gain value through reduced energy consumption per unit of separated product, higher yields of valuable light fractions, and lower rates of off-specification production requiring expensive reprocessing. Furthermore, superior separation efficiency in the fuel oil distillation process enables refiners to process lower-quality, less expensive feedstocks while still producing on-specification products. This feedstock flexibility provides a competitive advantage in procurement, allowing companies to source opportunistic crude grades or blended feeds that competitors with less efficient separation technology cannot economically process.

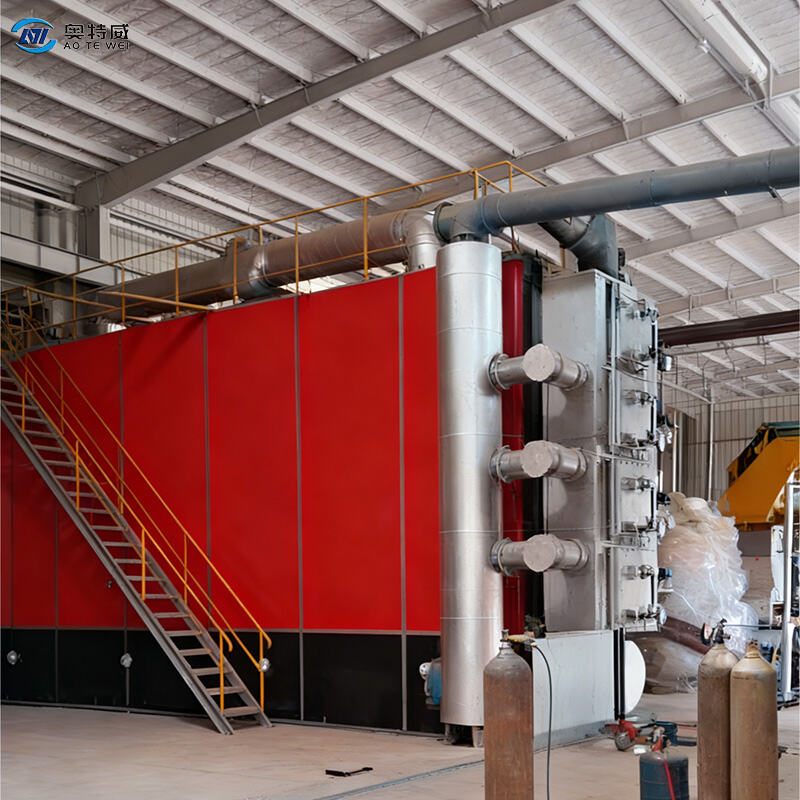

The fuel oil distillation process incorporates sophisticated energy recovery and heat integration systems that dramatically reduce fuel consumption and operating expenses while supporting environmental sustainability goals. These systems recognize that distillation requires substantial thermal energy input to vaporize feedstock and maintain temperature profiles throughout the separation column, but they also acknowledge that hot product streams exiting the process contain recoverable heat that would otherwise be wasted. By strategically exchanging heat between hot and cold process streams, operators achieve remarkable reductions in external heating requirements. A typical heat integration scheme in a fuel oil distillation process begins with using hot bottoms product to preheat incoming cold feedstock through shell-and-tube heat exchangers. Since the bottoms stream exits at temperatures often exceeding 350 degrees Celsius, it can raise the feedstock temperature by 200 degrees or more before the feedstock enters the furnace. This preheating reduces the furnace firing duty proportionally, translating directly into lower fuel gas or fuel oil consumption. The cost savings accumulate continuously throughout plant operations, improving profit margins year after year. Similarly, hot overhead vapor streams can preheat feed or generate low-pressure steam for use elsewhere in the facility. The fuel oil distillation process may include multiple levels of heat recovery, creating networks where numerous exchangers work together to minimize total energy consumption across the entire operation. Advanced designs employ pinch analysis techniques during engineering to identify thermodynamically optimal heat exchange arrangements that approach theoretical minimum energy requirements. The importance of these energy recovery systems extends beyond immediate cost savings. As carbon pricing mechanisms and emissions regulations become more prevalent globally, facilities with lower energy intensity face reduced compliance costs and carbon tax burdens. Companies operating efficient fuel oil distillation process installations position themselves favorably for future regulatory environments while demonstrating environmental stewardship to stakeholders and communities. Energy recovery also enhances process stability. When feedstock enters the distillation column already heated close to its boiling point, the furnace operates at lower firing rates with better turndown flexibility and more stable temperature control. This stability translates into more consistent product quality and fewer upsets requiring operator intervention. Maintenance costs decrease as well since heat exchangers operating with clean hydrocarbon streams on both sides experience minimal fouling compared to furnace tubes exposed to high heat flux conditions. The fuel oil distillation process achieves payback periods for heat integration investments typically ranging from two to four years, making these systems highly attractive capital expenditures that continue delivering value throughout the decades-long operational life of distillation facilities.

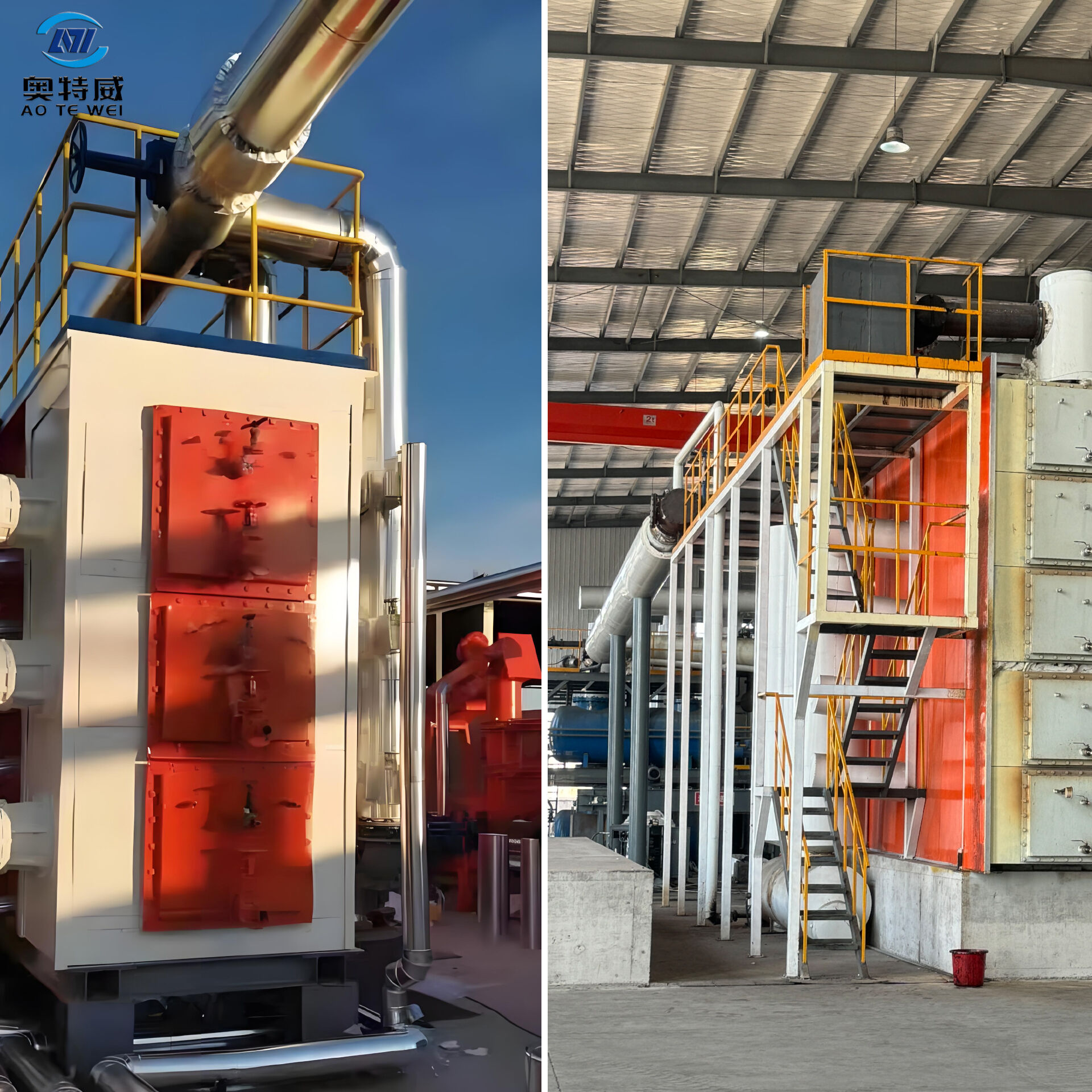

The fuel oil distillation process provides exceptional operational flexibility that allows businesses to adapt production profiles dynamically in response to changing market demands, feedstock availability, and seasonal variations, creating significant competitive advantages in volatile energy markets. Unlike fixed-ratio conversion processes, distillation columns can be operated across a range of conditions to shift product yields within certain bounds, giving operators valuable tools to optimize economic performance as circumstances evolve. This flexibility manifests through several operational parameters that plant personnel can adjust. Reflux ratio, which represents the proportion of overhead vapor condensed and returned to the column versus the amount withdrawn as product, serves as a primary control lever. Increasing reflux enhances separation sharpness and can shift more material into lighter product fractions, though at the cost of higher energy consumption and reduced throughput. Decreasing reflux has opposite effects, allowing operators to balance product quality, yield distribution, and processing costs based on current market prices for different fuel grades. Column operating pressure represents another flexibility dimension in the fuel oil distillation process. Running at reduced pressure lowers boiling points throughout the system, enabling separation of heat-sensitive heavy materials that would crack or polymerize under atmospheric conditions. Vacuum distillation units extend the product slate to include lubricating oil base stocks and specialty products commanding premium prices. Conversely, operating at elevated pressure can increase capacity within existing equipment when market conditions favor maximum throughput over product diversity. Feed preheat temperature affects the vapor-liquid balance entering the column, influencing where feed components distribute across the tray or packing sections. Adjusting this parameter helps optimize separation efficiency for different feedstock compositions as crude slate varies or when processing opportunity crudes with unusual properties. The fuel oil distillation process benefits from advanced process control systems that manage these multiple parameters simultaneously, using sophisticated algorithms to calculate optimal settings for operator-specified objectives such as maximizing profit, meeting product demand commitments, or minimizing energy costs. These control systems incorporate real-time economic data, enabling truly dynamic optimization that responds to price fluctuations in fuel markets that can change hourly. Seasonal flexibility proves particularly valuable for refiners serving markets with pronounced demand variations. Summer gasoline demand and winter heating oil demand create predictable annual cycles that the fuel oil distillation process can accommodate through planned operating mode changes. Facilities can reconfigure between modes during brief transition periods, avoiding the need for separate dedicated production trains for seasonal products. This operational flexibility also provides risk management benefits by reducing dependence on any single product market. When oversupply conditions depress margins for one fuel grade, operators can shift production emphasis toward products with healthier economics, maintaining overall facility profitability even when specific market segments face challenges.
